Description
Description
Technical Parameters
Product Configurations
Twin-Tower Type
- Classic PSA design with dual adsorption towers
- Reliable and cost-effective solution for standard hospital oxygen demand
- Easy to install and maintain

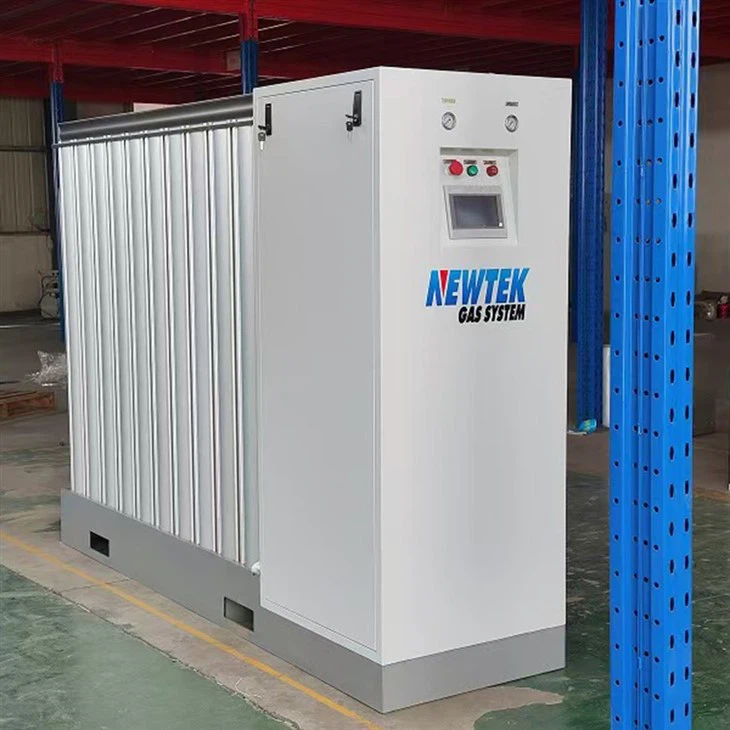

Modular Type
- Expandable capacity through modular design
- Space-saving and energy-efficient
- Ideal for hospitals with growing or fluctuating oxygen needs
Containerized Oxygen Generator (Premium Solution)
- Combines modular flexibility with containerized mobility
- Fully integrated “plug & play” oxygen plant inside an ISO container
- Includes compressor, PSA unit, storage, and optional cylinder filling station
- Mobile and ready for rapid deployment in remote or emergency settings
Core selling points
1️⃣ Medical-Grade Oxygen Purity
- Oxygen purity: 93 ±3% (meets ISO10083 & Pharmacopeia standards)
- Continuous operation 24/7 with automatic monitoring
- Instant startup and stable performance under variable loads
2️⃣ Compact & Micro-Scale Design
- Small footprint: only 0.8–1.2 m²
- Weight: below 180 kg (single module)
- Plug-and-play installation, ready to use within 1 hour
- Suitable for confined medical spaces and mobile stations
3️⃣ Quiet, Clean, and Safe Operation
- Low noise < 55 dB, suitable for patient areas
- Oil-free compressor ensures ultra-clean oxygen
- Multi-level medical filtration and bacterial removal system
- Built-in safety alarms for low purity, high pressure, and overheat
4️⃣ Intelligent Control System
- PLC + color touchscreen interface
- Automatic start/stop and pressure equalization
- IoT remote monitoring for hospitals’ BMS systems
- Real-time oxygen concentration and alarm display
5️⃣ Reliable & Easy to Maintain
- Long-life molecular sieve: > 20,000 hours
- Maintenance interval: every 6–12 months
- Modular components simplify replacement
- Optional remote diagnosis and technical support
Technical Highlights
| Parameter | Specification |
|---|---|
| Oxygen purity | 93 ± 3 % |
| Flow rate | 1 – 10 Nm³/h |
| Output pressure | 0.3 – 0.5 MPa |
| Noise level | ≤ 55 dB |
| Power supply | 220V / 50Hz or 110V / 60Hz |
| Power consumption | 0.4–0.5 kWh per Nm³ |
| Dimensions | From 0.8m × 0.7m × 1.2m |
| Weight | 120–180 kg |
| Control system | PLC + IoT remote monitoring |
| Operation mode | Fully automatic |
| Certification | ISO13485, CE, FDA, WHO PQ, PED |
Applications
| Medical Field | Typical Flow | Key Advantages |
|---|---|---|
| Small Hospitals / Clinics | 5–10 Nm³/h | Continuous oxygen, medical-grade purity |
| Ambulances / Mobile Units | 1–3 Nm³/h | Portable, shockproof, quick start |
| ICU / Isolation Wards | 5–8 Nm³/h | Silent operation, stable output |
| Field Medical Camps | 1–5 Nm³/h | Lightweight, easy to install anywhere |
| Home Care Systems | 1–2 Nm³/h | Plug-and-play, low noise, energy efficient |
Certified Safety and Compliance
Manufactured under ISO13485 medical device quality system
Certified with CE / FDA / WHO PQ for medical oxygen generation
Compliance with European Medical Gas Standard (EN ISO 7396-1)
Full factory validation reports and calibration certificates included
Why Choose Our Medical Micro Oxygen Generation System
✅ Medical-grade purity (93 ±3%) verified and certified
✅ Compact, ultra-quiet, and clean oxygen production
✅ Plug-and-play setup, suitable for hospitals and mobile use
✅ Smart PLC + IoT remote control system
✅ Long lifespan and low maintenance cost
✅ Certified under ISO13485, CE, and FDA standards
